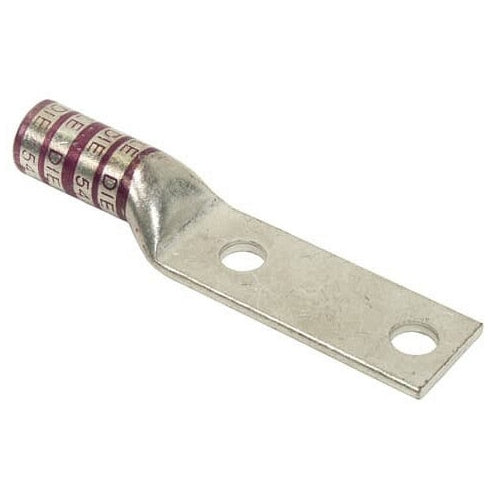

T&B 54866BE 2-Hole Long Barrel 1/2-1 3/4" 4/0

Overview

T&B 54866BE 2-Hole Long Barrel 1/2-1 3/4" 4/0

Product Specifications

• UPC: 78621089804
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Purple
• Die Index: 54
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 4.7 Inch
• Approval: UL, CSA
• Additional Information: Includes Blind End Inspection Hole
• Catalog Number: 54866BE
• Brand Name: Color-Keyed
• Model: 548
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 4/0 AWG (Code), 3/0 AWG (Weld), 182 KCMIL (Flex), 450/24 (Flex)
• Barrel Type: Long, Straight
• Pad Size: 3 Inch Length x 1.03 Inch Width x 0.14 Inch Thickness
• Catalog Description: COPPER TWO-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, WIRE SIZE 4/0 AWG, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE CODE 54, DIE COLOR CODE PURPLE
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Purple Color; 4.7 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 4/0 AWG (Code), 3/0 AWG (Weld), 182 kcmil (Flex), 450/24 (Flex) Conductor Size; 1/2 Inch Stud Size; 54 Die Index; 3 Inch Length X 1.03 Inch Width X 0.14 Inch Thickness Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Straight Barrel Type; Includes Blind End Inspection Hole; 548 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210898049
• SKU Name: t&b 54866be
