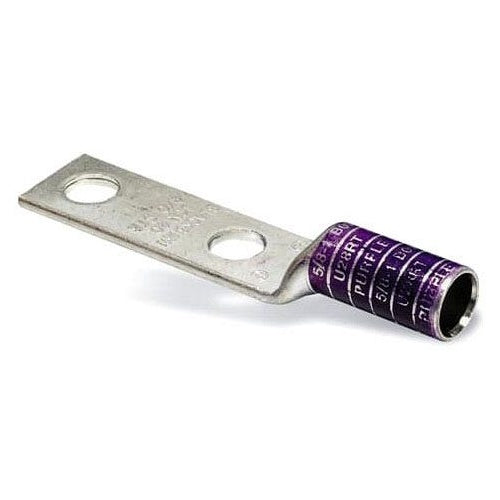

Blackburn LCN40 Copper Test Point 2-Hole Lug Long Barrel 4/0 1/2B Purple

Overview

Blackburn LCN40 Copper Test Point 2-Hole Lug Long Barrel 4/0 1/2B Purple

Product Specifications

• UPC: 78378603251
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1-3/4 Inch
• Stud Size: 1/2 Inch
• Color: Purple
• Die Index: 54
• Material: Tin Plated Seamless Copper
• Overall Length: 4-11/16 Inch
• Approval: UL, CSA
• Additional Information: Application Industrial, Oil Rig, Mining, Welding and Transportation Electrical Termination
• Catalog Number: LCN40
• Model: LCN
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 4/0 AWG
• Barrel Type: Long, Straight
• Barrel Length: 1-3/8 Inch
• Pad Size: 3 Inch L x 1-1/32 Inch W x 1/8 Inch Thk
• Catalog Description: TYPE LCN COPPER TWO-HOLE LUG, LONG BARREL, MAX 35KV, WIRE SIZE 4/0, 1/2 INCH BOLT HOLE, TIN PLATED, DIE COLOR CODE PURPLE
• Category: Large Terminals & Connectors
• Full Technical Description: Tin Plated Seamless Copper Material; Purple Color; 4-11/16 Inch Overall Length; 1-3/8 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 4/0 AWG Conductor Size; 1/2 Inch Stud Size; 54 Die Index; 3 Inch L X 1-1/32 Inch W X 1/8 Inch Thk Pad Size; 2 Pad Hole(S); 1-3/4 Inch Pad Hole Spacing; Long, Straight Barrel Type; Application Industrial, Oil Rig, Mining, Welding and Transportation Electrical Termination; LCN Model
• Manufacturer: THOMAS & BETTS BLACKBURN
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 783786032518
• SKU Name: lcn40 blkbrn
