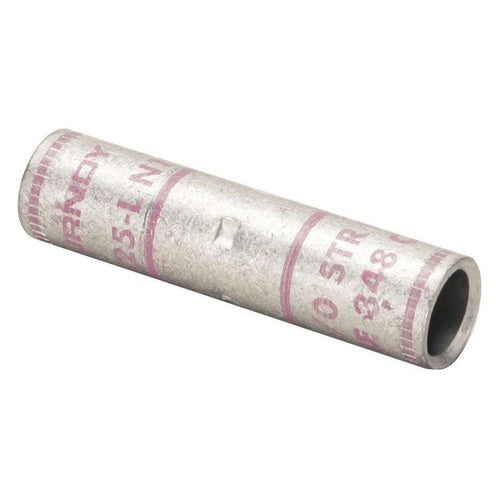

Burndy YS2C-LBOX 2Str Copper Compression Splice

Overview

Burndy YS2C-LBOX 2Str Copper Compression Splice

Product Specifications

• UPC: 78181055525
• Barrel Type: Short with Chamfered
• Length: 2 Inch
• Outer Diameter: 0.42 Inch
• Body Material: Electro Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 15/16 Inch; Die Index 10; Temperature Rating 90 Deg C
• Catalog Number: YS2CLBOX
• Brand Name: HYLINK[TM]
• Model: YS-L
• Type: Butt with Center Wire Stop
• Voltage Rating: 35 Kilovolt
• Conductor Size: 2 AWG Stranded
• Conductor Material: Copper
• Color Code: Brown
• Catalog Description: 2 AWG CU, STANDARD BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 10 DIE INDEX
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Center Wire Stop Type; 2 Inch; 0.42 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 Kilovolt Voltage Rating; Electro Tin Plated Copper Body Material; 2 AWG Stranded Conductor Size; Brown Color Code; Short With Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 15/16 Inch; Die Index 10; Temperature Rating 90 Deg C; YS-L Model
• Made In Usa: Yes
• Manufacturer: BURNDY PRODUCTS
• Manufacturer Brand: Burndy Products
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810555255
• SKU Name: bur ys2clbox
