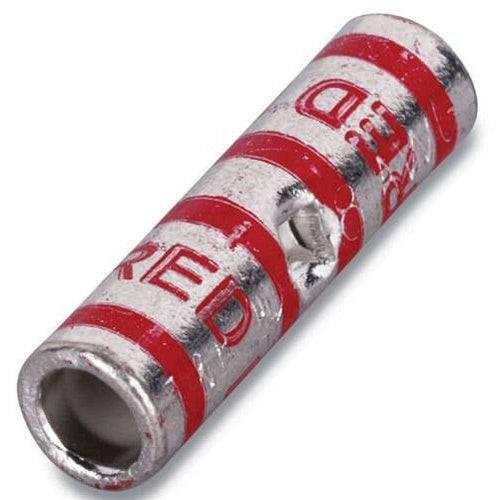

T&B 54507 2 Way Splice Connector No2

Overview

T&B 54507 2 Way Splice Connector No2

Product Specifications

• UPC: 78621054507
• Length: 1.25 Inch
• Outer Diameter: 0.41 Inch
• Body Material: Electro Tin Plated Wrot Copper
• Approval: UL, CSA
• Additional Information: Die Code 33; Strip Length 5/8 Inch
• Catalog Number: 54507
• Brand Name: Blackburn/Color-Keyed
• Type: 2-Way
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 2 AWG (Code), 125/24 (Flex), 4 AWG (Weld Flex)
• Conductor Material: Copper
• Color Code: Brown
• Barrel Type: Standard
• Catalog Description: COPPER TWO-WAY SPLICE CONNECTOR, STANDARD BARREL, MAX 35KV, WIRE SIZE 2 AWG, TIN PLATED, DIE CODE 33, DIE COLOR CODE BROWN
• Category: Large Terminals & Connectors
• Full Technical Description: 2-Way Type; 1.25 Inch; 0.41 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated Wrot Copper Body Material; 2 AWG (Code), 125/24 (Flex), 4 AWG (Weld Flex) Conductor Size; Brown Color Code; Standard Barrel Type; Die Code 33; Strip Length 5/8 Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 786210545073
• SKU Name: t&b 54507
