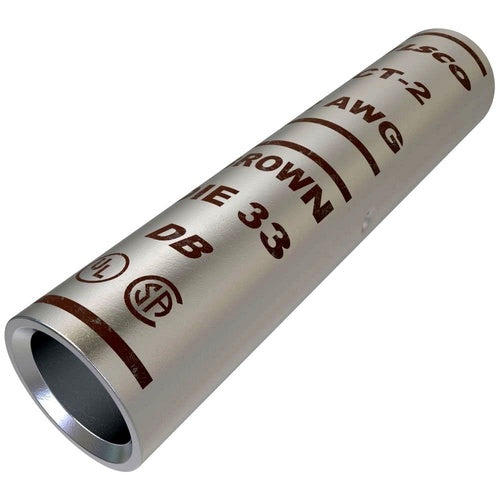

Ilsco CT-2 2Awg Copper Crimp Connector

Overview

Ilsco CT-2 2Awg Copper Crimp Connector

Product Specifications

• UPC: 78366911427
• Barrel Type: Short with Chamfered End
• Length: 1.875 Inch
• Inner Diameter: 0.312 Inch
• Outer Diameter: 0.421 Inch
• Body Material: Electro Tin Plated Seamless Copper
• Approval: UL 453G/467/486A/B, CSA
• Additional Information: RoHS Compliant; Temperature Rating 90 Deg C; Application Grounding and Bonding
• Catalog Number: CT-2
• Brand Name: SURECRIMP[R]
• Model: CT
• Type: Center Wire Stop
• Voltage Rating: 35 Kilovolt
• Conductor Size: 2 AWG
• Conductor Material: Copper
• Color Code: Brown
• Catalog Description: SURECRIMP COPPER COMPRESSION SLEEVE, CONDUCTOR SIZE 2, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Center Wire Stop Type; 1.875 Inch; 0.312 Inch Inner Diameter; 0.421 Inch Outer Diameter; Copper Conductor Material; UL 453G/467/486A/B, CSA Approval; 35 Kilovolt Voltage Rating; Electro Tin Plated Seamless Copper Body Material; 2 AWG Conductor Size; Brown Color Code; Short With Chamfered End Barrel Type; Surecrimp [R] Brand; RoHS Compliant; Temperature Rating 90 Deg C; Application Grounding and Bonding; CT Model
• Made In Usa: Yes
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 783669114270
• SKU Name: ct2 ilsco
