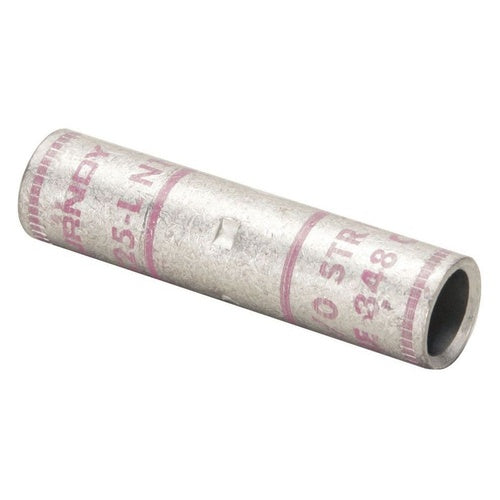

Burndy YS30-L 300Mcm Butt Splice

Overview

Burndy YS30-L 300Mcm Butt Splice

Product Specifications

• UPC: 78181050815
• Barrel Type: Standard with Chamfered
• Length: 2.47 Inch
• Outer Diameter: 0.81 Inch
• Body Material: Electro-Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compatible; Wire Strip Length 1-1/8 Inch; Die Index 17 or 298; Temperature Rating 90 Deg C
• Catalog Number: YS30L
• Brand Name: HYLINK[TM]
• Model: YS-L
• Type: Butt with Centre Wire Stop
• Voltage Rating: 600 V to 35 KV
• Conductor Size: 300 KCMIL
• Conductor Material: Copper
• Color Code: White
• Catalog Description: 300 KCMIL CU, STANDARD BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, WHITE COLOR CODE, 17 OR 298 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Centre Wire Stop Type; 2.47 Inch; 0.81 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; Electro-Tin Plated Copper Body Material; 300 kcmil Conductor Size; White Color Code; Standard With Chamfered Barrel Type; HYLINK[TM] Brand; RoHS Compatible; Wire Strip Length 1-1/8 Inch; Die Index 17 or 298; Temperature Rating 90 Deg C; YS-L Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810508152
• SKU Name: bur ys30l

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
