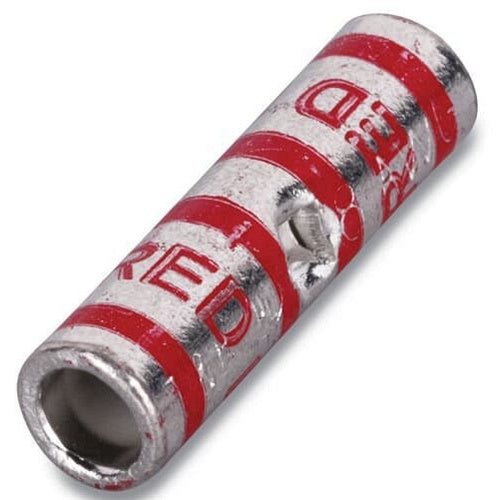

T&B 54514 2 Way Splice Connector 300 Kcmil

Overview

T&B 54514 2 Way Splice Connector 300 Kcmil

Product Specifications

• UPC: 78621054514
• Outer Diameter: 0.83 Inch
• Body Material: High Conductivity Electro Tin Plated Wrought Copper
• Approval: UL, CSA
• Additional Information: Die Code 66
• Catalog Number: 54514
• Type: 2-Way
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 300 KCMIL (Code)
• Conductor Material: Copper
• Color Code: White
• Barrel Type: Standard
• Length: 2.13 Inch
• Catalog Description: COPPER TWO-WAY SPLICE CONNECTOR, STANDARD BARREL, MAX 35KV, WIRE SIZE 300 KCMIL, TIN PLATED, DIE CODE 66, DIE COLOR CODE WHITE
• Category: Large Terminals & Connectors
• Full Technical Description: 2-Way Type; 2.13 Inch; 0.83 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; High Conductivity Electro Tin Plated Wrought Copper Body Material; 300 kcmil (Code) Conductor Size; White Color Code; Standard Barrel Type; Die Code 66
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 786210545141
• SKU Name: t&b 54514

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
