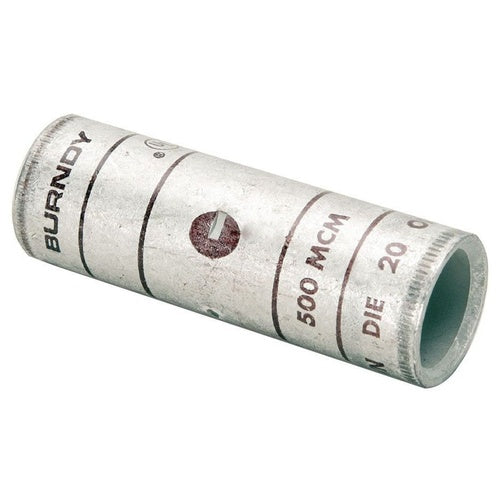

Burndy YS34L 500 Copper Compression Splice

Overview

Burndy YS34L 500 Copper Compression Splice

Product Specifications

• UPC: 78181050855
• Barrel Type: Standard with Chamfered
• Length: 3.15 Inch
• Outer Diameter: 1.06 Inch
• Body Material: Electro Tin Plated Copper
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Wire Strip Length 1-7/16 Inch; Die Index 20/299; Temperature Rating 90 Deg C
• Catalog Number: YS34L
• Brand Name: HYLINK[TM]
• Model: YS-L
• Type: Butt with Center Wire Stop
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 500 KCMIL
• Conductor Material: Copper
• Color Code: Brown
• Catalog Description: 500 KCMIL CU, STANDARD BARREL, INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, BROWN COLOR CODE, 20 OR 299 DIE INDEX.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt With Center Wire Stop Type; 3.15 Inch; 1.06 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated Copper Body Material; 500 kcmil Conductor Size; Brown Color Code; Standard With Chamfered Barrel Type; Hylink Brand; RoHS Compliant; Wire Strip Length 1-7/16 Inch; Die Index 20/299; Temperature Rating 90 Deg C; YS-L Model
• Made In Usa: Yes
• Manufacturer: Burndy Products
• Manufacturer Brand: Burndy Products
• Proposition 65 Warning (Ca): Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 781810508558
• SKU Name: bur ys34l

Resources

• Technical Drawing
• Technical Line Drawing
• Manufacturer Spec Sheet
