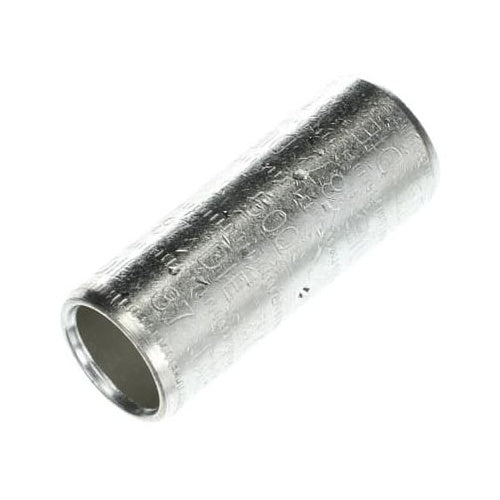

T&B 54518 Copper Tin Plated 2-Way Connector Splice Standard 500 Brown

Overview

T&B 54518 Copper Tin Plated 2-Way Connector Splice Standard 500 Brown

Product Specifications

• UPC: 78621054518
• Length: 2.75 Inch
• Outer Diameter: 1.11 Inch
• Body Material: Electro Tin Plated Wrot Copper
• Approval: UL, CSA
• Additional Information: Die Code 87; Strip Length 1-5/16 Inch
• Catalog Number: 54518
• Brand Name: Blackburn/Color-Keyed
• Type: 2-Way
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 500 KCMIL (Code)
• Conductor Material: Copper
• Color Code: Brown
• Barrel Type: Standard, Short
• Catalog Description: COPPER TWO-WAY SPLICE CONNECTOR, STANDARD BARREL, WIRE SIZE 500 KCMIL, TIN PLATED, DIE CODE 87, DIE COLOR CODE BROWN
• Category: Large Terminals & Connectors
• Full Technical Description: 2-Way Type; 2.75 Inch; 1.11 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated Wrot Copper Body Material; 500 kcmil (Code) Conductor Size; Brown Color Code; Standard, Short Barrel Type; Die Code 87; Strip Length 1-5/16 Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 786210545189
• SKU Name: t&b 54518
