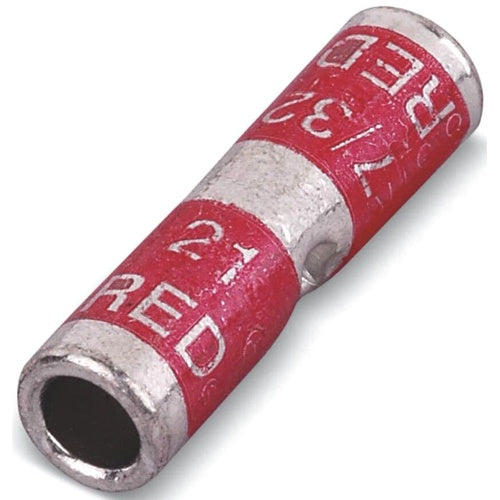

Blackburn CSP30 3/0 Copper Compression Splice

Overview

Blackburn CSP30 3/0 Copper Compression Splice

Product Specifications

• UPC: 78378613210
• Body Material: Seamless Tin Plated High Conductivity Copper
• Approval: UL, CSA
• Additional Information: Constructional Feature Corrosion Resistance
• Catalog Number: CSP30
• Model: CSP
• Voltage Rating: 35 KV
• Conductor Size: 3/0 AWG Stranded
• Conductor Material: Copper
• Color Code: Orange
• Barrel Type: Short with Chamfered End
• Length: 1-3/4 Inch
• Catalog Description: TYPE CSP COPPER SPLICE, SHORT BARREL, MAX 35KV, WIRE SIZE 3/0 STR, TIN PLATED, DIE COLOR CODE ORANGE
• Category: Large Terminals & Connectors
• Full Technical Description: 1-3/4 Inch; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; Seamless Tin Plated High Conductivity Copper Body Material; 3/0 AWG Stranded Conductor Size; Orange Color Code; Short With Chamfered End Barrel Type; Constructional Feature Corrosion Resistance; CSP Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 783786132102
• SKU Name: csp30 blackburn

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
