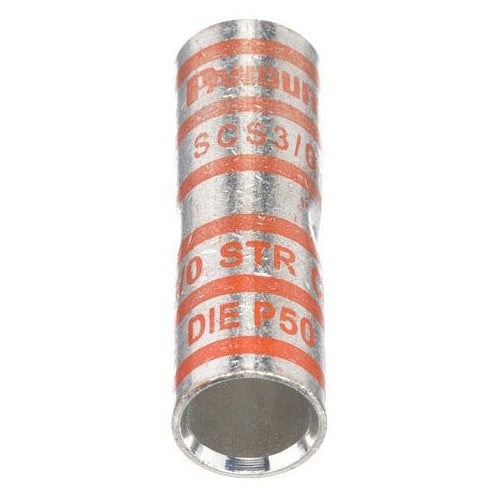

Panduit SCS3/0-X Copper Butt Splice 3/0Awg Pkg 10

Overview

Panduit SCS3/0-X Copper Butt Splice 3/0Awg Pkg 10

Product Specifications

• UPC: 07498390335
• Length: 2.12 Inch
• Inner Diameter: 0.51 Inch
• Outer Diameter: 0.64 Inch
• Body Material: Tin Plated Copper
• Approval: UL, CSA
• Additional Information: Temperature Rating 90 Deg C; ROHS Compliant
• Catalog Number: SCS3/0-X
• Model: SCS
• Type: Butt
• Voltage Rating: 35 KV
• Conductor Size: 3/0 AWG
• Conductor Material: Copper
• Color Code: Orange
• Barrel Type: Standard
• Catalog Description: THE SCS3/0-X COPPER COMPRESSION LUG LUG, STANDARD BARREL, HAS COLOR-CODED BARRELS MARKED WITH PANDUIT AND SPECIFIED COMPETITOR DIE INDEX NUMBERS FOR PROPER CRIMP DIE SELECTION. AN INSPECTION WINDOW AIDS TO VISUALLY ASSURE FULL CONDUCTOR INSERTION, AND THE TIN-PLATE MATERIAL HELPS TO INHIBIT CORROSION. UL LISTED AND CSA CERTIFIED TO 35 KV AND TEMPERATURE RATED TO 90C.
• Category: Large Terminals & Connectors
• Full Technical Description: Butt Type; 2.12 Inch; 0.51 Inch Inner Diameter; 0.64 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; Tin Plated Copper Body Material; 3/0 AWG Conductor Size; Orange Color Code; Standard Barrel Type; Pan-LUG[TM] Brand; Temperature Rating 90 Deg C; RoHS Compliant; SCS Model
• Manufacturer: PANDUIT CORPORATION
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 074983903351
• SKU Name: pand scs3/0x
