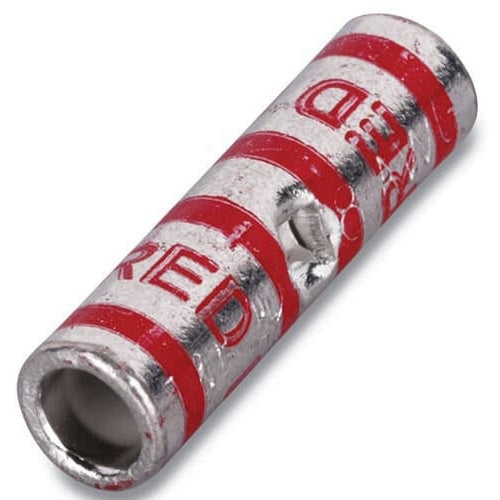

T&B 54511 2 Way Splice Connector 36586

Overview

T&B 54511 2 Way Splice Connector 36586

Product Specifications

• UPC: 78621054511
• Length: 1.75 Inch
• Outer Diameter: 0.63 Inch
• Body Material: Electro Tin Plated Wrot Copper
• Approval: UL, CSA
• Additional Information: Die Code 50; Strip Length 1 Inch
• Catalog Number: 54511
• Brand Name: Blackburn/Color-Keyed
• Type: 2-Way
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Size: 3/0 AWG (Code), 2/0 AWG (Flex), 2/0 AWG (Weld, Flex), 325/24 (Flex), 133/0.0316 (Flex), 259/0.0227 (Flex), 427/0.0177 (Flex)
• Conductor Material: Copper
• Color Code: Orange
• Barrel Type: Standard
• Catalog Description: COPPER TWO-WAY SPLICE CONNECTOR, STANDARD BARREL, MAX 35KV, WIRE SIZE 3/0 AWG, TIN PLATED, DIE CODE 50, DIE COLOR CODE ORANGE
• Category: Large Terminals & Connectors
• Full Technical Description: 2-Way Type; 1.75 Inch; 0.63 Inch Outer Diameter; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; Electro Tin Plated Wrot Copper Body Material; 3/0 AWG (Code), 2/0 AWG (Flex), 2/0 AWG (Weld, Flex), 325/24 (Flex), 133/0.0316 (Flex), 259/0.0227 (Flex), 427/0.0177 (Flex) Conductor Size; Orange Color Code; Standard Barrel Type; Die Code 50; Strip Length 1 Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 786210545110
• SKU Name: t&b 54511
