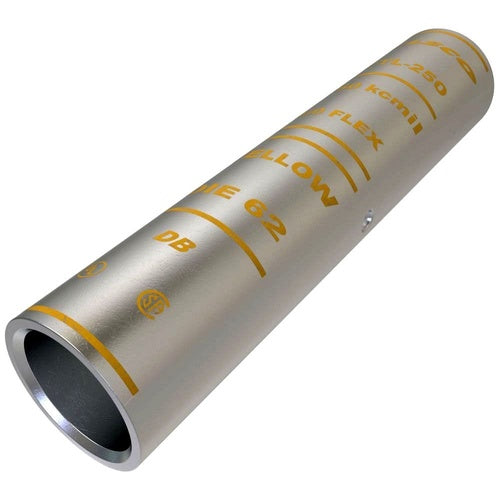

Ilsco CTL-250 250mcm Copper Crimp Connector

Overview

Ilsco CTL-250 250mcm Copper Crimp Connector

Product Specifications

• UPC: 78366912835
• Length: 3.375 Inch
• Inner Diameter: 0.593 Inch
• Outer Diameter: 0.75 Inch
• Body Material: Electro-Tin Plated High Strength Seamless Copper
• Approval: UL 453G, UL 486A/B, CSA
• Additional Information: Application Grounding and Bonding; Temperature Rating 90 Deg C; Packaging Quantity 6
• Catalog Number: CTL-250
• Model: CTL
• Type: Center Wire Stop
• Voltage Rating: 35 KV
• Conductor Size: 250 KCMIL
• Conductor Material: Copper
• Color Code: Yellow
• Barrel Type: Long with Chamfered End
• Catalog Description: SURECRIMP COPPER COMPRESSION SLEEVE, CONDUCTOR SIZE 250, LONG BARREL, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Center Wire Stop Type; 3.375 Inch; 0.593 Inch Inner Diameter; 0.75 Inch Outer Diameter; Copper Conductor Material; UL 453G, UL 486A/B, CSA Approval; 35 kV Voltage Rating; Electro-Tin Plated High Strength Seamless Copper Body Material; 250 kcmil Conductor Size; Yellow Color Code; Long With Chamfered End Barrel Type; Surecrimp [R] Brand; Application Grounding and Bonding; Temperature Rating 90 Deg C; Packaging Quantity 6; CTL Model
• Made In Usa: Yes
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Splice
• Unspsc: 39121449
• UPC 12 Digit: 783669128352
• SKU Name: ctl250 ilsco

Resources

• Product Spec Sheet
• Manufacturer Spec Sheet
