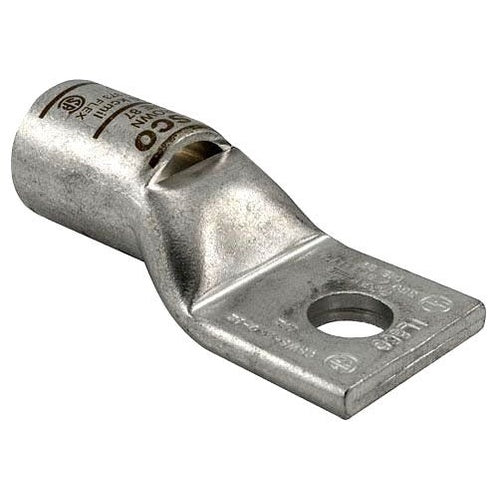

Ilsco CSWS-4/0-12 1-Hole Lug

Overview

Ilsco CSWS-4/0-12 1-Hole Lug

Product Specifications

• UPC: 78366963969
• Pad Size: 1.25 Inch Length x 0.999 Inch Width
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Purple
• Die Index: I-54
• Material: Electro Tin Plated High Strength Seamless Copper
• Overall Length: 2.616 Inch
• Approval: UL 453G/467/486A/B, CSA
• Additional Information: RoHS Compliant; With Sight Hole; Cable Entry Type Chamfered; Wire Strip Length 0.937 Inch; Temperature Rating 90 Deg C; Applicable Standard NEBS3
• Catalog Number: CSWS-4/0-12
• Brand Name: SureCrimp[R]
• Model: CSWS
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 4/0 AWG
• Barrel Type: Standard, Straight
• Barrel Length: 0.875 Inch
• Catalog Description: SURECRIMP COPPER COMPRESSION LUG, CONDUCTOR SIZE 4/0, 1 HOLE, 1/2IN BOLT SIZE, STANDARD BARREL, SIGHT WINDOW, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated High Strength Seamless Copper Material; Purple Color; 2.616 Inch Overall Length; 0.875 Inch Barrel Length; Copper Conductor Material; UL 453G/467/486A/B, CSA Approval; 35 Kilovolt Voltage Rating; 4/0 AWG Conductor Size; 1/2 Inch Stud Size; I-54 Die Index; 1.25 Inch Length X 0.999 Inch Width Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; Surecrimp [R] Brand; RoHS Compliant; With Sight Hole; Cable Entry Type Chamfered; Wire Strip Length 0.937 Inch; Temperature Rating 90 Deg C; Applicable Standard NEBS3; CSWS Model
• Made In Usa: Yes
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Lug
• Unspsc: 39121448
• UPC 12 Digit: 783669639698
• SKU Name: ilsco csws4/012
