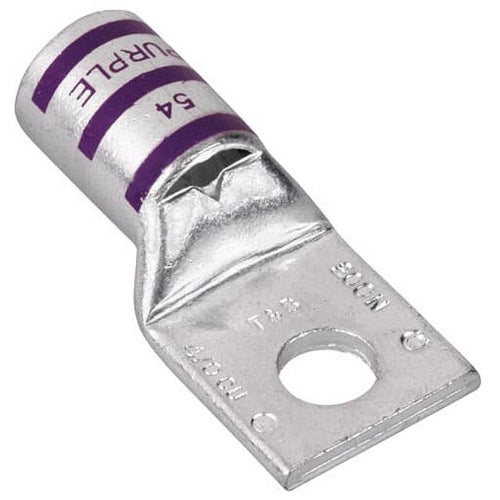

T&B 54170 4/0Awg Purple 1-Hole Copper Lug

Overview

T&B 54170 4/0Awg Purple 1-Hole Copper Lug

Product Specifications

• UPC: 78621054170
• Number Of Pad Holes: 1
• Stud Size: 1/2 Inch
• Color: Purple
• Die Index: 54
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 2.5 Inch
• Approval: UL, CSA
• Catalog Number: 54170
• Brand Name: Color-Keyed
• Model: 541
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 4/0 AWG (Code), 200 (Navy, Flex), 3/0 AWG (Weld, Flex), 450/24 (Flex), 703/0.0154 (Flex), 0.56 (Flex)
• Barrel Type: Standard, Straight
• Pad Size: 1.25 Inch Length x 1.03 Inch Width x 0.14 Inch Thickness
• Catalog Description: COPPER ONE-HOLE LUG, STANDARD BARREL, PEEP HOLE, MAX 35KV, WIRE SIZE 4/0 AWG, 1/2 INCH BOLT SIZE, TIN PLATED, DIE COLOR CODE PURPLE, DIE CODE 54
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Purple Color; 2.5 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 4/0 AWG (Code), 200 (Navy, Flex), 3/0 AWG (Weld, Flex), 450/24 (Flex), 703/0.0154 (Flex), 0.56 (Flex) Conductor Size; 1/2 Inch Stud Size; 54 Die Index; 1.25 Inch Length X 1.03 Inch Width X 0.14 Inch Thickness Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; 541 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210541709
• SKU Name: t&b 54170
